Bossmen PCB and IC Carrier Airtight Drying Cabinets
Bossmen PCB and IC carrier special Dry Box-provides the most reliable preservation of ABF carrier with larger area and more layers
The IC carrier board is the most important component of IC packaging, and the ABF carrier board is widely used in the packaging of high-performance computing chips in the fields of 5G mobile communications, artificial intelligence, cloud computing, and big data analysis. Dry Box is used to store ABF substrates with larger area and more layers, which is a necessary solution for the production line to improve the production yield.
-
- 分門獨立監控
-
- 滾輪置物盤
-
- CDA潔淨乾燥
-
- 物料感知回饋
-
- 物料感知回饋
-
- 可視玻璃視窗、門板檔案盒
【Bossmen PCB and IC Carrier Airtight Drying Cabinets】規格:
1. Dimensions: W1560 xH 1878 xD900mm.

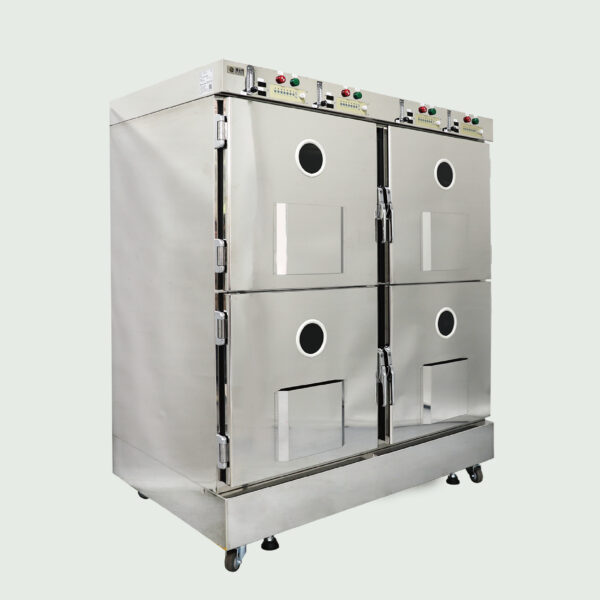

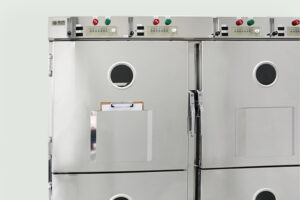

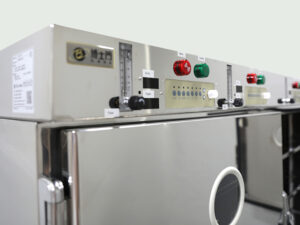

2. Cabinet body: stainless steel cabinet body material, four independent airtight doors, glass window, attached flowmeter, high-load brake wheel, level foot pad, door file box.
3. Inlet source: CDA or nitrogen.
4. Humidity: below 5%RH.

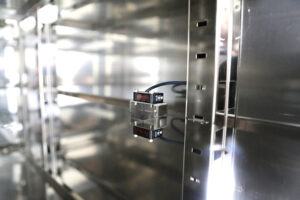

5. Temperature and humidity monitoring: separate doors and independent monitoring of temperature and humidity, digital panel has settings, records, alarms, offset correction.
6. Material perception feedback: the light shows whether there is material stored in the cabinet.
7. Door open abnormal alarm.
8. Internally equipped with roller storage tray and static shelf, suitable for H Rack, Panel Tray, magazine.
9. Power supply: 110V/220 V50/60Hz
10. Power consumption: 16W
11. Provide customized services.
