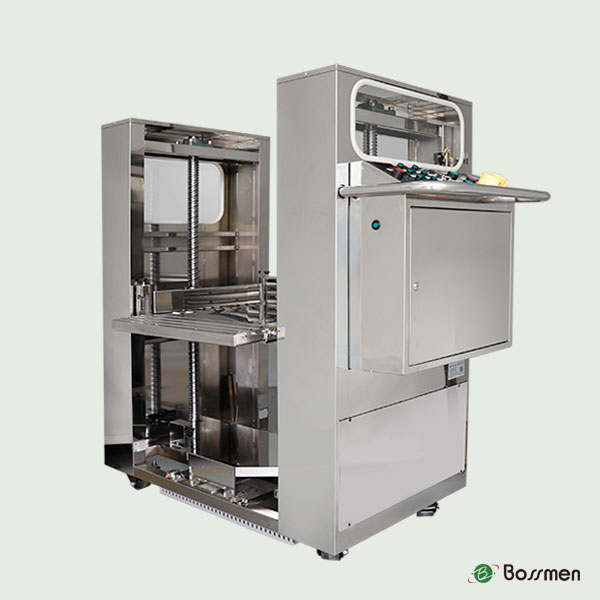

Bossmen-Rack special lifting trolley-BM3005
The trolley is specially designed for carrying Rack racks. It can preset 10 heights. The roller design is convenient for massaging, and the Rack anti-fall block design ensures safety in straight in and straight out. The movable roller side bar can be pulled out or retracted as required. It is used to extend the gap of the door panel when the oven enters and exits, reducing the risk and time of manual handling.
【Bossmen-Rack special lifting trolley-BM3005】Specifications:
1. Cabinet size:
(1.) Size: W940×H1454×D1480(mm)
(2.) Inner platform size: W750×D600(mm)
2. Material and equipment:
(1.)The whole series is made of stainless steel 304 bright surface material, laser cut and welded steel structure design with structural load reinforcement.
(2.)A screw mechanism is used to drive the gears, and a servo motor is used to facilitate precise positioning during lifting.
(3.)The four corners use universal bearings as an auxiliary, and the load is 80KG without tilting.
(4.) The movable roller side bar can be pulled out or retracted as required, and it is used to extend the gap of the door panel when the oven enters and exits.
(5.) And Rack anti-drop design, straight in and straight out is safe and secure.

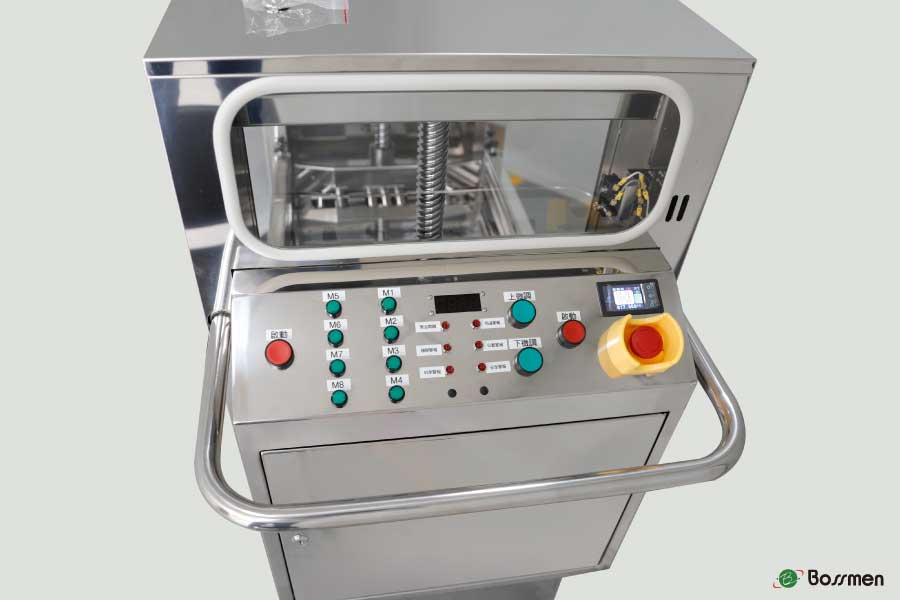

(6.) Microcomputer control panel, a total of 10 sets of heights can be set, memorized and changed by yourself, and it is equipped with a lithium battery for easy movement.
(7.)The lifting operation requires the personnel to press and hold the start button for a long time, and it will stop automatically when it reaches the specified height, so as to avoid the risk of collision and falling caused by unmanned control during the lifting operation.
