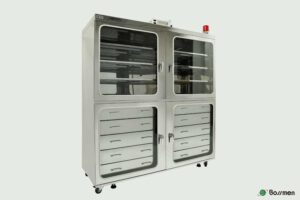

Bossmen-Stainless Steel Nitrogen Cabinet-BM1137

【Bossmen-Stainless Steel Nitrogen Cabinet-BM1137】Specifications:

1. Cabinet size:

(1.) Outer inch (mm): W1800*H1913*D700 (including wheel height 2013mm)

(2.) Number of drawers: 10

2. Cabinet material and equipment:

(1.) The cabinet body is made of stainless steel SUS 430 bright surface material, equipped with stainless steel high-load laminates and drawers, which are stable and convenient to take and place items. The laminates are movable and can be adjusted up and down. Increase or decrease according to demand.

(2.) With locking pressurized handle + buzzer + grounding chain, using 3mm tempered glass and silicone airtight strip without gap design, safe and secure.

(3.) The door leaf detection system is designed to stop the nitrogen supply when the door is opened, and start the nitrogen when the door is closed, which is linked with the nitrogen controller.

4. Nitrogen energy saving controller FN2HT:

(1.) Adopt 1mm anti-rust high-hardness powder baking paint, non-slip and shock-absorbing rubber feet.

(2.) Embedded nitrogen flow meter: 5~50 LPM (10~100 SCFM).

(3.)0.5” LED large screen displays humidity/temperature; high-precision temperature and humidity sensor, up to 100 meters long-distance data collection.

(4.) Avoid the traditional humidity sensor being too close to the air inlet, and cut off the air intake when the container does not reach the specified set value, and the traditional humidity sensor cannot be long Distance detection and detection of false conditions.

(5.) The display value of humidity is 0.1%RH~99.9%RH, and the display value of temperature is 0.1℃~99.9℃.

5. Control method: Use the humidity setting value to control the nitrogen inflow, and stop the intake when the humidity setting value is reached, so as to save nitrogen consumption and quickly dehumidify. The humidity is adjustable from 1%~60%RH.

6. Temperature and humidity memory function (Data Log): built-in memory, which can store 11,900 temperature/humidity records, and the collection time can be set from 1 to 240 minutes, year/month /Day/Hour/Minute can be set, can use RS232 connection to download to computer for reading, adopt quality assurance record format, and support database file format.

7. The newly upgraded offset correction function key is added to facilitate regular temperature and humidity correction and ensure the accuracy of the display.

8. Humidity monitoring and alarm system, which can set the starting humidity value and time conditions and choose two warning methods: buzzer (90 decibels) or flashing.

9. Power supply: 100~240V∕50~60Hz; power consumption: 16W.
